| Product Specification Sheet | |
| 5376WH power bank Energy Storage Basic Parameters | |

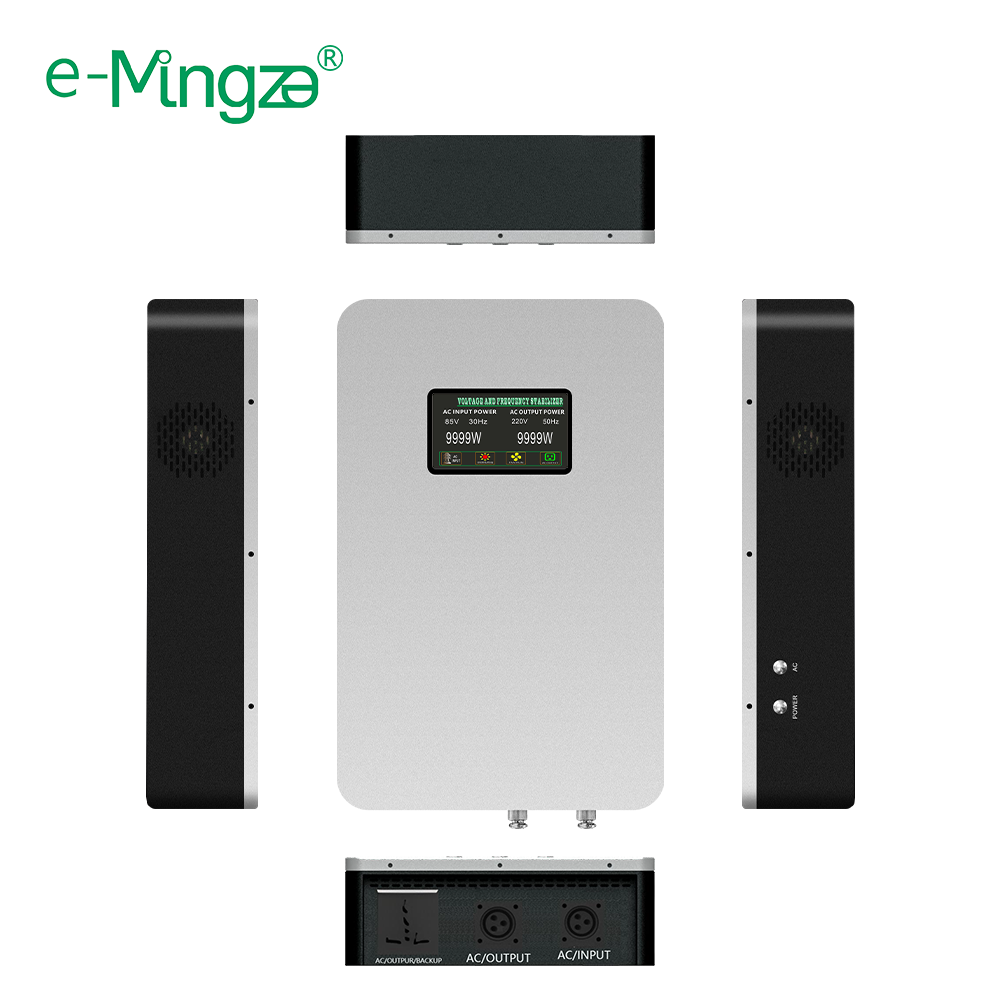

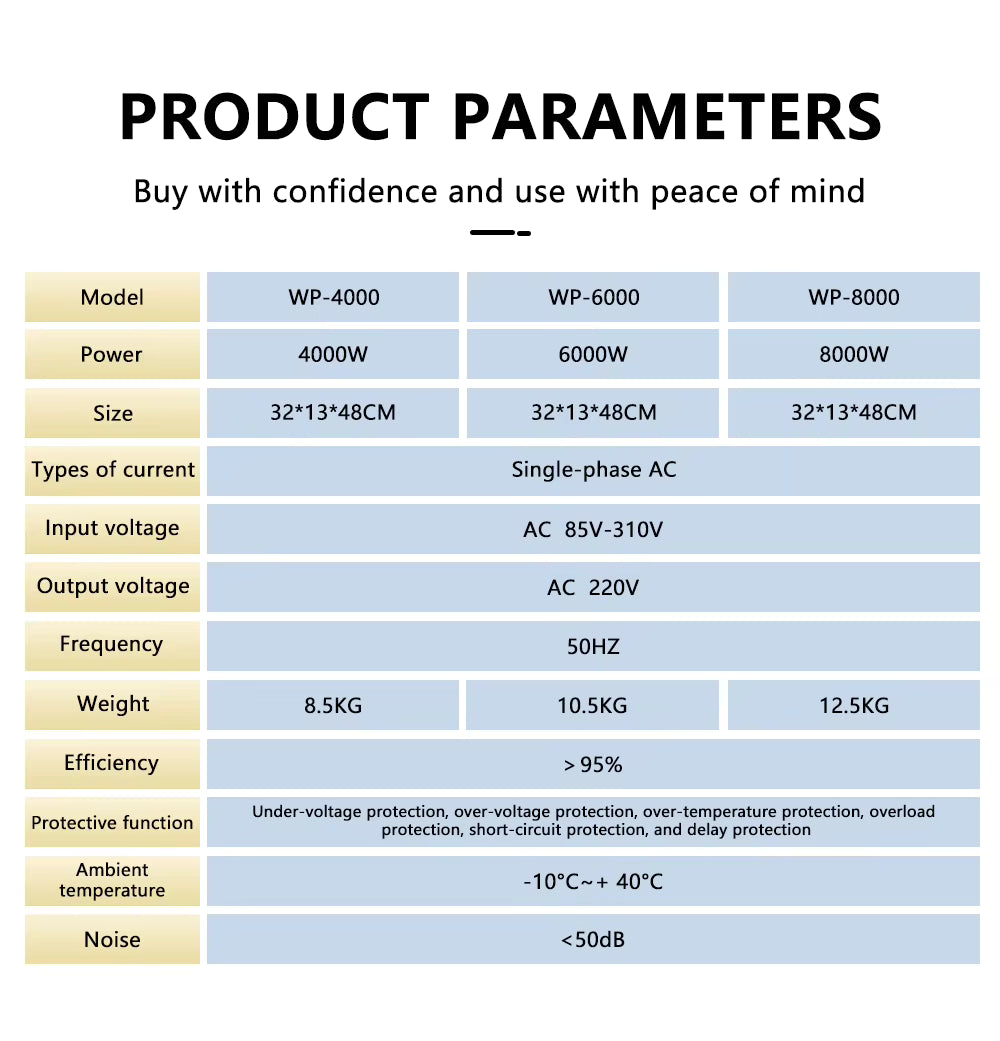

| Product name | MZWP-4000/6000/8000 |
| Charging Parameters | |
| Input voltage range | AC85V-310V |
| Input frequency | HZ30-100HZ |
| Input voltage and efficiency ratio | 30-100HZ AC85V/95V/110V/130V/310V 75%-98% |
| Input power factor | 0.99 |
| Startup mode | soft start mode |
| Input undervoltage protection | AC80V |
| Input overvoltage protection | AC320V |
| Input temperature protection | 85°C |
| Input overload protection | 4200W-6200W-8200W |
| Voltage | AC220-228V |
| Security Protection | CP abnormal protection, leakage protection, over-current protection, over-voltage protection, under-voltage protection, plug end and over-temperature protection in the box |
| Machine parameters | |

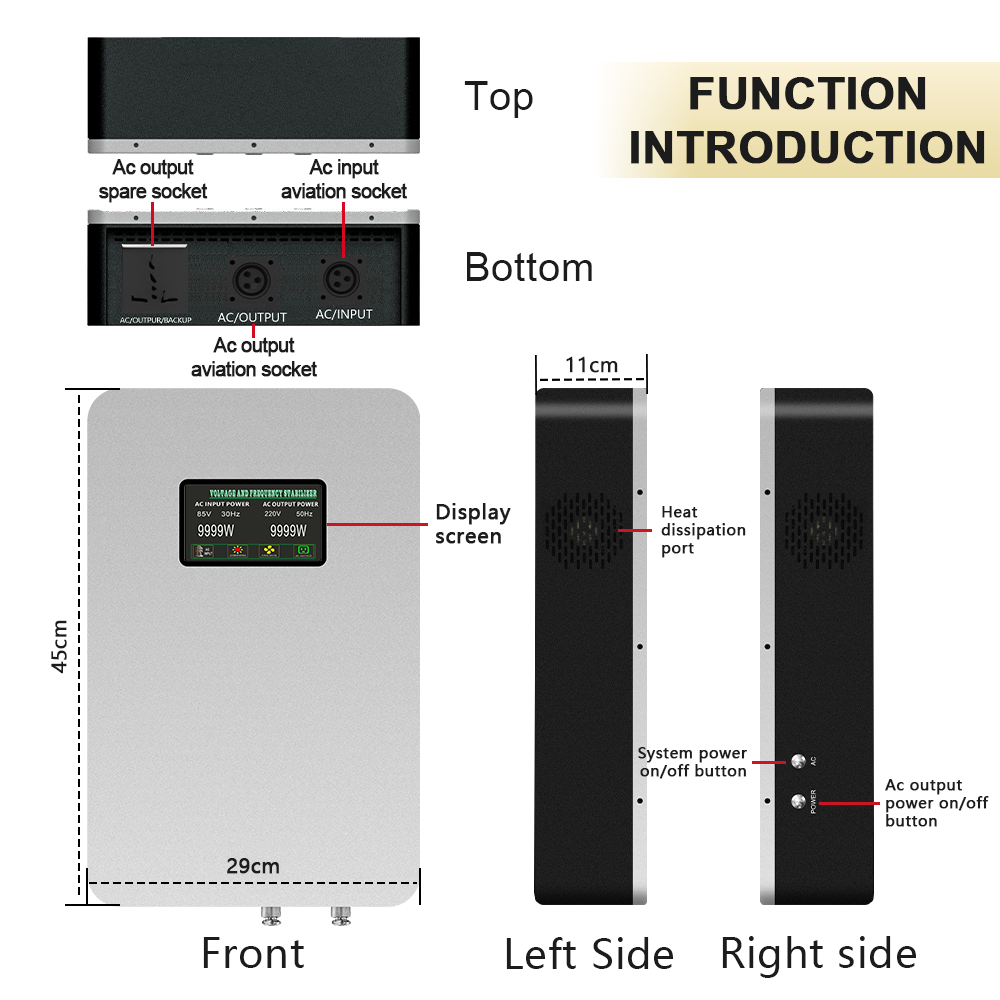

| Dimension L*W*H/mm | 32*13*48CM |
| Weight/kG | 15KG |
| Operating temperature/°C | 45'℃ to 85°C |
| Prouduct Characteristics | |

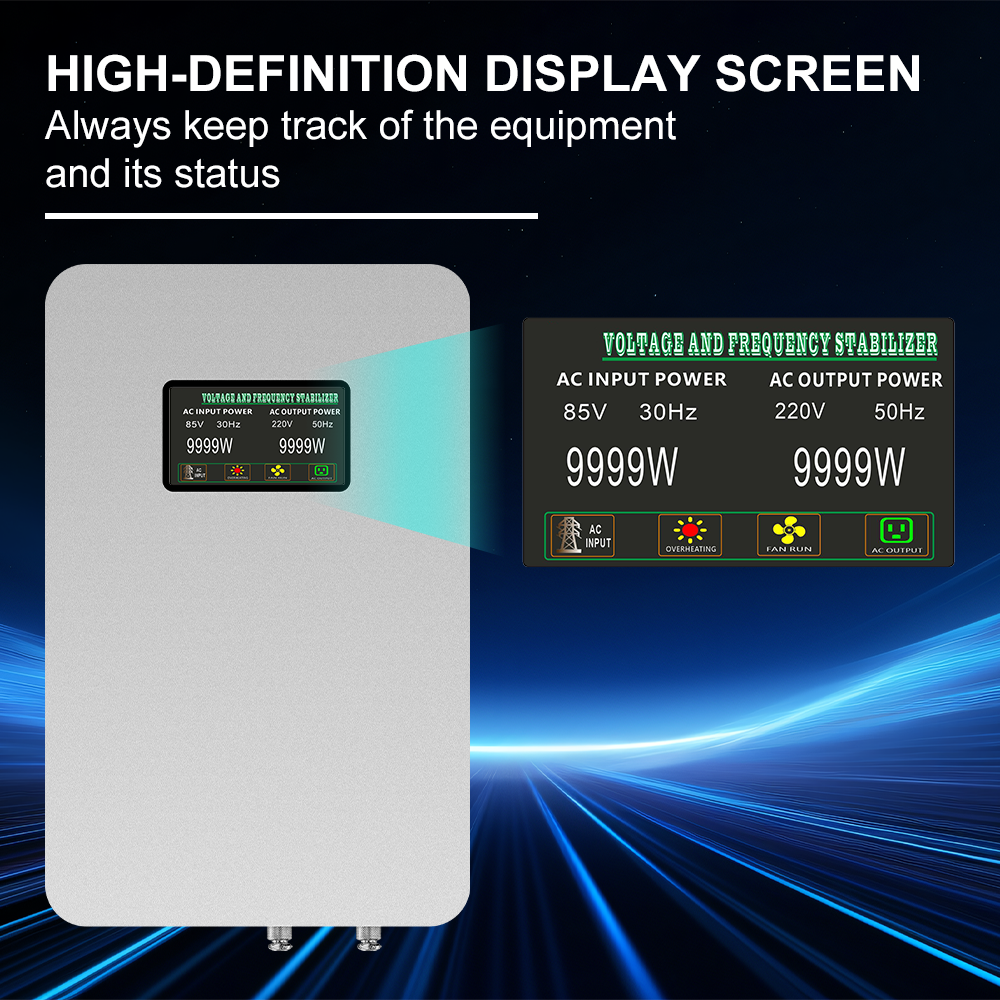

| 1. During operation, the AC input voltage, frequency, and power, as well as the AC output voltage, frequency, and power, are simultaneously displayed in real-time. The input power should be greater than the output power due to conversion efficiency losses in the intermediate process. | |
| 2. Supports charging of most electric and hybrid vehicles on the market. | |
| 3. High quality pure copper COc certified cable. | |
| 4. upports vehicle charging lock gun function. | |
| 5. Self stop when fully charged. | |
